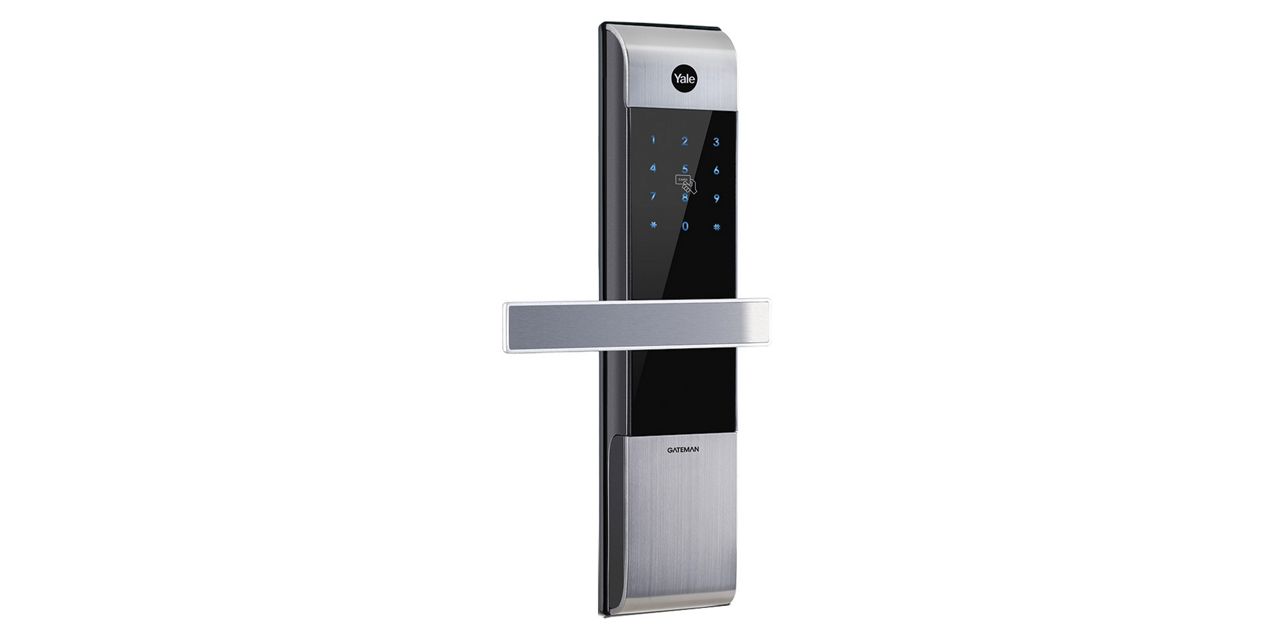

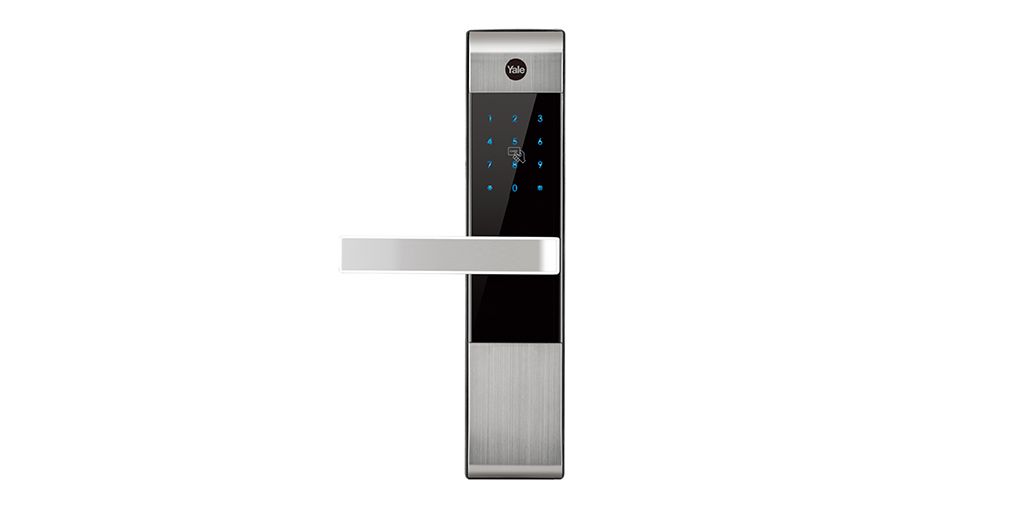

YDM3109+ Smart Mortise Lock

YDM3109+ Smart Mortise Lock

Access solutions
  • Pin code : 4-10 digits
  • Cards : 4 (Up to 40 Cards)
  • Mechanical keys : 2

Technical Details:

  • Front Body : 40.10mm( D) X 68.6mm(W) X 306.6mm(H)
  • Back Body : 37mm(D) X 72.8mm(W) X 306.6mm(H)

Optional:

  • Bluetooth
Kye Fratures
  • Smart Touchpad
  • Various Access : PIN code , Cards
  • Operation Status Notification
  • Mechanical Key Override
  • Missing Card Key Invalidation
  • Automatic Locking
  • Anti-Panic Egress with Safe Handle
  • Alarm (Break / Damage)
  • Fake PIN code
  • Low Battery Alarm and Emergency Power Supply Terminal
  • Category:Mortise lock
    Cards: 4Up to 40
    Mechanical Keys: 2 pcs.
    PIN Code:4 - 10 digits
    Color:Black
    Door Thickness:35-80 mm (Wooden door)
    Backset60  mm
    Front Body Dimension (DxWxH): 40.10mm(D) X 68.6mm(W) X 306.6mm(H)
    Back Body Dimension (DxWxH):37mm(D) X 72.8mm(W) X 306.6mm(H)
